Equipment

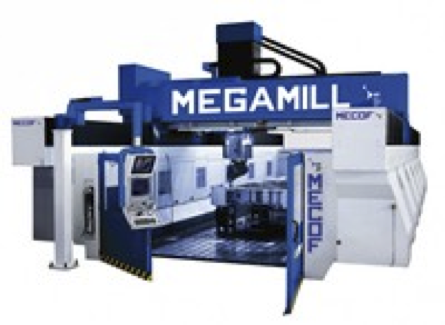

MECOF Megamill

Machine Travels:
* X-Axis 787" (20.0 m) Longitudinal
* Y-Axis 196"   (5.0 m) Vertical
* Z-Axis 132"   (3.5 m) Cross/Ram

3x Head   3K RPM 1180"/min CAT50

3+2 Head 6K RPM 1180"/min CAT50

5x Head 21K RPM 1180"/min HSK63

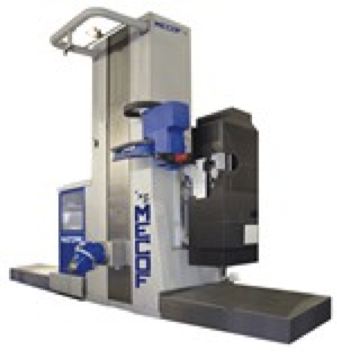

MECOF Mastermill

Machine Travels:
* X-Axis 550" (14.0 m)  Longitudinal
* Y-Axis 118"   (3.0 m)  Vertical
* Z-Axis   63"   (1.6 m)  Cross/Ram

3+2 Head 6K RPM 1180"/min CAT50

5x Head 21K RPM 180"/min HSK63

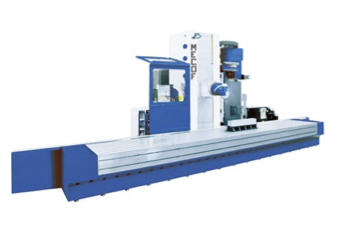

MECOF M3

Machine Travels:
* X-Axis 393" (10.0 m) Longitudinal
* Y-Axis 104"   (2.6 m) Vertical
* Z-Axis  59"    (1.5 m) Cross/Ram

3x Head 6K RPM 787"/min CAT50

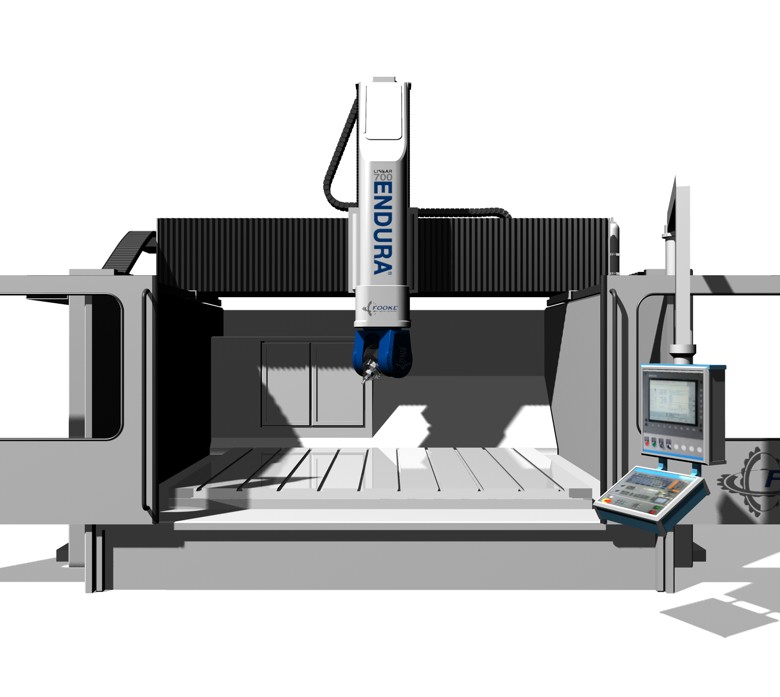

Fooke 705 (coming soon)

Machine Travels:
* X-Axis 56" (1.4 m) Longitudinal
* Y-Axis 107"   (2.7 m) Vertical
* Z-Axis  32"    (0.8 m) Cross/Ram

Full 5-Axis

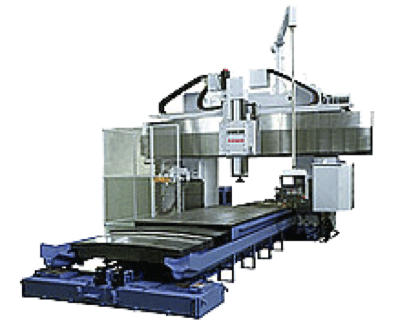

Mitsubishi MVR35

Machine Travels:
* X-Axis 240" (6.0 m)  Longitudinal
* Y-Axis 150" (3.8 m)  Vertical
* Z-Axis  66"  (1.6 m)  Cross/Ram

3x Head 4K RPM 390"/min CAT50














Mitsubishi Boring Mill

Machine Travels:
* X-Axis 118" (3.0 m)  Longitudinal
* Y-Axis   90" (2.5 m)  Vertical
* Z-Axis   50" (1.3 m)  Cross/Ram

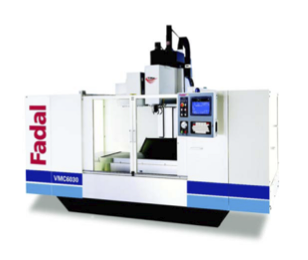

Fadal 8030

Machine Travels:
* X-Axis 80" (2.0 m)  Longitudinal
* Y-Axis 30" (0.7 m)  Vertical
* Z-Axis 30" (0.7 m)  Cross/Ram

3x Head 6K RPM 100"/min 40 Tapper

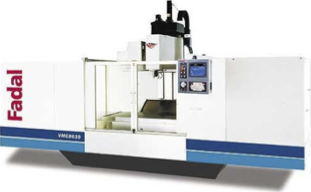

Fadal 6030

Machine Travels:
* X-Axis 60" (1.5 m  Longitudinal
* Y-Axis 30" (0.7 m) Vertical
* Z-Axis 30" (0.7 m) Cross/Ram

3x Head 6K RPM 100"/min 40 Tapper

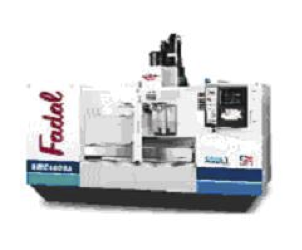

Fadal 4020

Machine Travels:
* X-Axis 40" (1.0 m)  Longitudinal
* Y-Axis 20" (0.5 m)  Vertical
* Z-Axis 28" (0.7 m)  Cross/Ram

3x Head 6K PRM 100"/min 40 Tapper












Fadal 3016

Machine Travels:
* X-Axis 30" (0.7 m)  Longitudinal
* Y-Axis 16" (0.4 m)  Vertical
* Z-Axis 16" (0.4 m)  Cross/Ram

3x Head 6K RPM 100"/min 40 Tapper












Cincinnati MAG FTV5-3700 5-Axis

Machine Travels:
* X-Axis 146" (10.0 m) Longitudinal
* Y-Axis   40"  (2.6 m)  Vertical
* Z-Axis   31"  (1.5 m)  Cross/Ram

5x Head 10K RPM 138"/min HSK100
